August 6, 2012

high-key studio portraits (part 2) – with Ulorin Vex

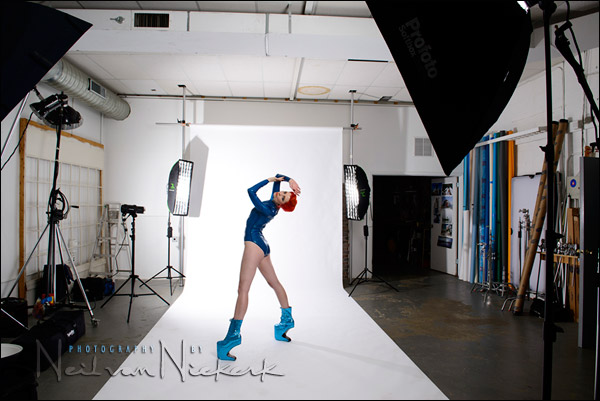

Continuing the photo session with Ulorin Vex, doing high-key studio portraits in the studio, she changed into a different costume. I wanted a more interesting edge definition than just the light spilling back from the background, so I added two gridded softboxes to each side …

The grids on the softboxes help contain the light spill, instead of the light flooding everywhere.  The light from behind (via the two gridded softboxes), helped define the contours of the outfit.

I used the Profoto Air system to trigger the two Profoto D1 heads (one on the background, and one in the softbox). To trigger the Nikon Speedlights, I set them to SU4 mode, so that they would be optically triggered when the main lights go off.

Other photo sessions where I used the gridded soft-boxes:
sequence: setting up the lighting at a photo shoot
portrait session – Steinway pianist

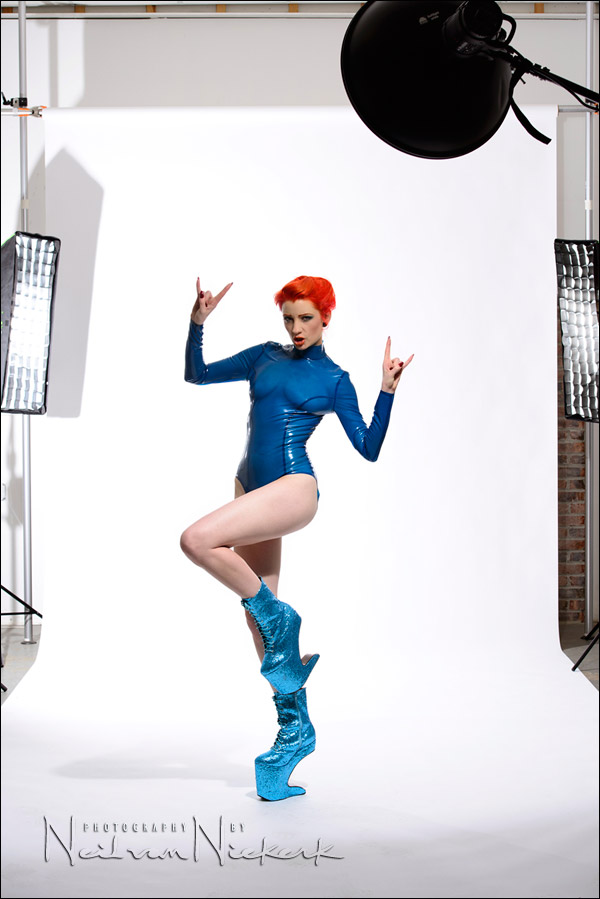

With Ulorin Vex in this blue latex outfit, I started off with the beauty dish, as it was set up for the previous set. For some poses, the harder light from the beauty dish would give a shadow that is too distinct. (As can be seen in this photo.)

I either had to ask Ulorin Vex to restrict her movements (which would hamper the flow of the shoot), or I had to change to a larger, softer light source.  I settled on changing the beauty dish out for a 3′ x 4′ softbox – the Profoto Heat-Resistant Softbox RF 3×4″ (90 x 120cm) (B&H). Much softer light.

For more info on the processing:  Photoshop filters – retouching for portraits

camera settings for all images: 1/125 @ f/8 @ 100 ISO



other articles about this photo session



equipment used during this photo session

Nikon D800  (B&H);  Nikon 70-200mm f/2.8 VR II (B&H)
(2x) Nikon SB-910 Speedlight (B&H)
Profoto D1 Air 500 W/s Monolight Studio Kit (B&H)
Profoto Heat-Resistant Softbox RF 3×4″ (90 x 120cm) (B&H)
Profoto beauty dish (B&H)

The gridded softboxes that were used, have now been discontinued.



{ 11 comments… read them below or add one }

1 Sean August 6, 2012 at 3:31 pm

Hey Neil,

Beautiful work as always. Just on curiosity, what did you use to trigger all of the lights?

Thanks in advance!

-Sean

Reply

2 Neil vN August 6, 2012 at 3:35 pm

Sean, I just realized I left out that detail in my original post, but have added it now:

I used the Profoto Air system to trigger the two Profoto D1 heads (one on the background, and one in the softbox). To trigger the Nikon Speedlights, I set them to SU4 mode, so that they would be optically triggered when the main lights go off.

Reply

3 Mike August 6, 2012 at 5:38 pm

Nice post Neil as always! Great Model! Lucky the Skater wasn’t around eh ;-)
Just through curiosity can the Canon 580ex mk2 speed lights be set in anyway so they fire as did the Nikons?

Reply

4 Carlos A August 6, 2012 at 6:29 pm

@Mike

If I recall correctly some Nikon flashes have a built-in optical slave mode that allow for this type of optical trigger without the need of any additional equipment.

This functionality is not included even on the top-of-the line Canon flashes. For you to do this with Canon flashes, you need to add an external optical trigger.

Reply

5 Kevin D August 6, 2012 at 11:37 pm

Whoa! crispy clean images. And those shoes are killer I’d pay to she how she walks in them :)

Reply

6 Neil vN August 7, 2012 at 12:02 am

She’s surprisingly elegant in those shoes.

The shoes have a large enough front part that she could balance on those, as you can see in these photos. So she was quite able to move in them and walk in them. But yeah … unexpected from a first glance.

Reply

7 Neil vN August 7, 2012 at 12:05 am
8 Fred August 7, 2012 at 12:20 am

Hi!

Another interesting post, Neil! :-)

I have been looking for strip lights for my speedlights, and the ones you have look very interesting. However, I notice in the two shots where they are shown that they are very bright in the middle and rather dark further out. I would have prefered a much more even spread of light. Do you have the dome diffusers on? Is there an internal baffle? What is the zoom setting?

Thanks!

Reply

9 Neil vN August 8, 2012 at 2:59 pm

Fred, don’t be guided by how the striplights’ output appears in those photos.

Also, I removed the outer baffle to give us a bit more power so that the speedlights had a chance against the higher-powered Profoto Units. So the way the light appears there looking at the striplights themselves, would be misleading.

Reply

10 Kevin Deibert August 10, 2012 at 10:48 am

N,
I would love to know more about the “sharing studio space” agreement that you have. I really don’t have the room in my house and don’t have the client base to justify a studio. What kind of arrangements did you make with your partner? This sounds like another tangent….

Reply

11 Neil vN September 18, 2012 at 3:41 am

Kevin, the studio is owned by another photographer in the area who works as a commercial photographer. There is a small group of other photographers who have access to the studio for a monthly fee. Scheduling is via a shared calendar.

Reply
